The Roads All Activities Map View can be used to create an Overview Map for specific Activities
1. Load Road Shape Files into Spatial Storage.
- Positive Spatial Match: this occurs when the GID_ID attribute in Phoenix Connect finds a match in the GIS_LINK column of one of the SHAPE files loaded in the Spatial Storage – SHAPE Files.
- For the View Map of Activities we use the Roads, Details, GIS ID
- Positive Spatial is only needed for the Road, Activities will be mapped based on the to/from kms.

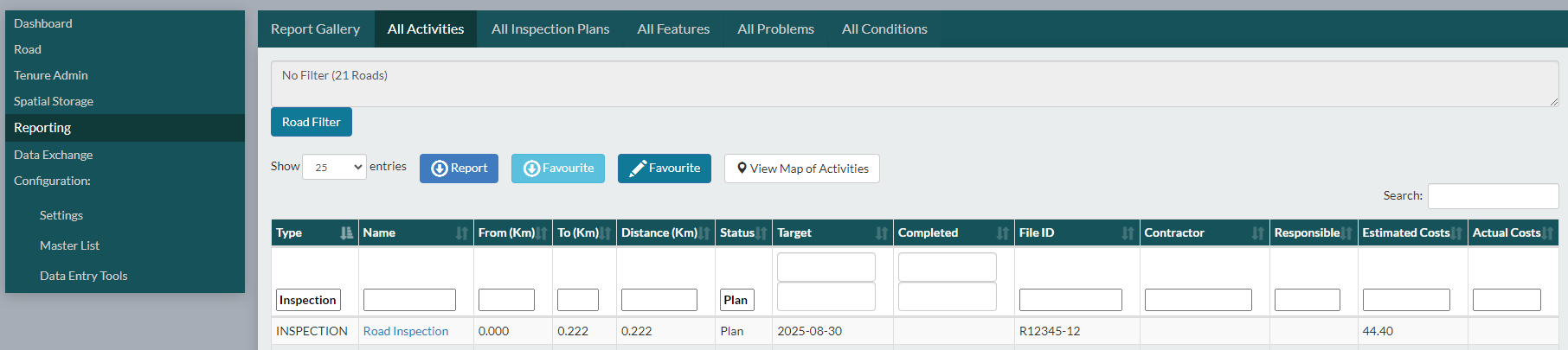

2. To create an All Roads Activities Map go to Reporting, All Activities Tab.
3. Set filter to isolate Roads and Activities (required) Example: Road Inspections Planned for 2025)
4. Once the View Map of Activities window opens, use the Map Menu icon (3 horizontal lines) on the vertical banner to expand the list of available display options.
- Use the radio button to turn on a Base Map
- Checkboxes will be enabled for Activities that have a Positive Spatial Match.
5. Before Generating PDF you should first set your printing settings
- customize your output settings for your PDF.
- customize your PDF Map Title
- add a Data Table that will list the Activities shown on Your PDF Map
