Activity Markup: Plot Tool

Phoenix Connect Users can now create Geo-referenced pdf Plot maps using the new Plot Tool.

How do i use the Plot tool ?

1. Enable the mark-up layer by copying selected layers & 'Save Markup'

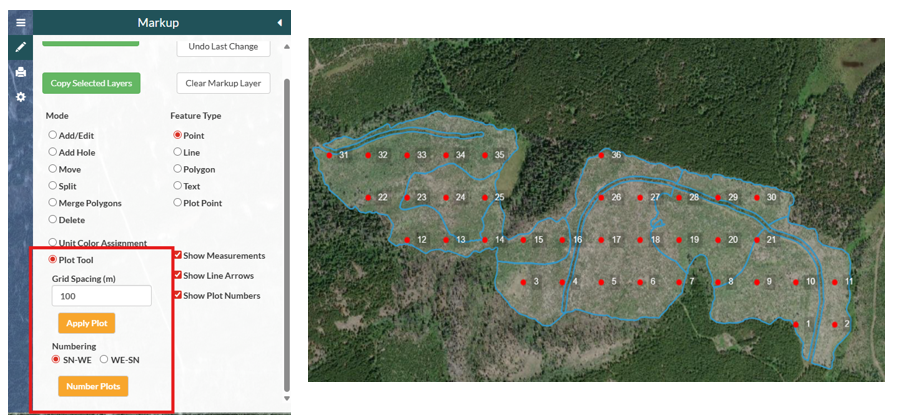

2. Select 'Plot Tool' Mode
3. input desired Grid Spacing (m). ex: 100m, 140m, 170m etc.
4. 'Shift-Select' productive polygons / area to be plotted.
5. Hit button.
6. Make any changes required:
   • add, delete or move plot points.
7. Choose numbering option & Hit Button.

for more information see : Activity Markup Tool
